Annual Capacity 100,000t- Biomass Pellets Production Line in Guangdong

Description
The annual capacity of biomass pellets production line in Guangdong is 100,000t. Guangdong pellets production line makes full use of waste woods caused by wood processing, waste timber, Chinese medicine residues and other flammable biomass materials to produce wood pellets. Pellets can replace coals as fuels. What’s more, this pellets production line in Guangdong can solve the problem of herd residues disposal. Pellets are suitable for civil use, like heating and cooking. They can also be used in industry, like burning boilers, hand fired furnaces, stokerfeed boilers, reciprocating furnaces, furnaces in fluid bed, circulating fluidized bed, etc.

Advantages of Pellets Making Machine

• The final products have excellent quality and low production cost. The sources of raw materials for biomass pellets production line in Guangdong are rich.
• Many raw materials are collocated reasonably. This kind of biomass fuel has high combustion efficiency.
• Biomass pellets go through strict dust extraction. The ash content s is greatly decreased.
• Cities in south China are faced with the pressure of fuel shortage. Biomass pellets production line in Guangdong can relieve the pressure.

Production Process of the Pellets Making Machine

• The waste wood disposal line is used to shred different wood materials to crushed materials at the same time.
• Crushed materials are transported to three rotors hammer flakers by conveyors and then are shredded to qualified sizes. In pellets production line in Guangdong, Disc Screens are used to screen and get rid of sandy soil and unqualified materials.

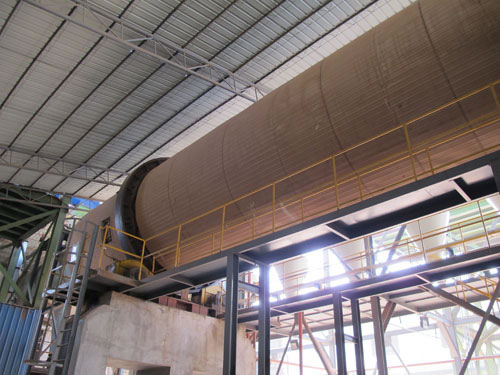

• Materials are conveyed to the drying roller by using fans for drying. After drying, the moisture content of the materials is about 12%. Materials need to go through efficient cyclone separators for further dedusting.

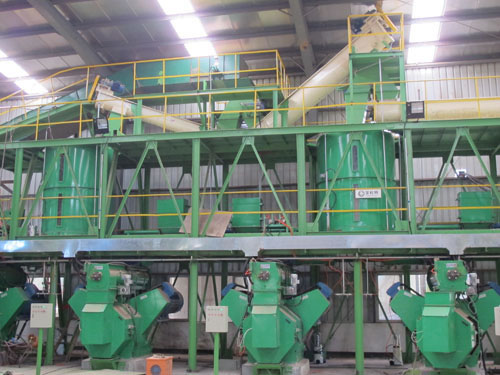

• Materials after being dried are transported to the stirrer for proper moisture and steam. Then, materials are conveyed to the pellet mills. By high temperature extrusion, the materials come out of circular mould in the form of pellets. After being cooled and screened, pellets in qualified sizes fall into conveyers while unqualified pellets need to be pelletized.
• Packing. Pellets passing screening are conveyed to packing machines by belt conveyors.

Technical Parameters of the Pellets Making Machine

Equipment for Production
The annual capacity of biomass pellets production line in Guangdong is 100,000t. Equipment needed in production involves waste wood disposal line; three rotors hammer flakers, Disc Screens, hot-blast furnaces, dryers, conveyors, silos, dust removal equipment, pellet mills, coolers, screeners and packing machines.

Panda Pellet Company is specialized in manufacturing pellets production line. It has cooperated with top European manufacturers for over 30 years in the fields of pellets making machine and wood pellet line. It brings us with the vigor of quality and technology. In addition to pellets production line in Guangdong, it also builds other biomass pellets production lines (pellets making machines) in Hebei, Tianjin, Jiangsu, Jiangxi, etc.
