Vertical Feed Shredder
Description

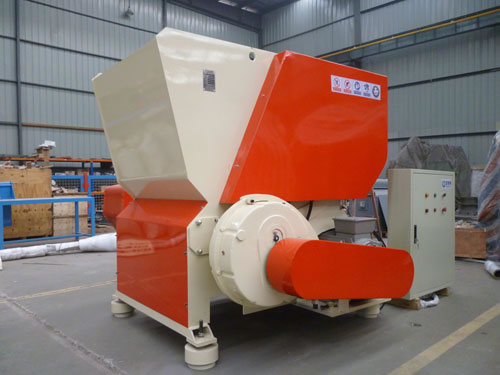

The function of the vertical shredder is to cut all kinds of waste woods, pallets, plate edges, wood ends, barks, waste wood-based panels, concrete moldboard, waste veneers, packing boxes, coconuts, palms and so on. Chopped materials by vertical feed shredder can be used to manufacture wood-based panels or biomass solidifying fuel. They can also be used in energy plants or for burning boilers. The vertical shredder mainly consists of hopper, reduction gearbox, discharging device, hydraulic cylinder, belt drive, electrical machine, outer cover, cutter and screen.
Advantages
- We have price advantage. The steel of the wood waste shredder is purchased in China. What’s more, shredders are made in China, which reduces our production cost.
- Our technology is advanced. The knife roll of vertical feed shredder has applied for the patent.
- Our products are of good quality. International brands are adopted by vertical shredder, which include electrical machines, bearings, valves, control elements, pumps, hydraulic components and sensors.
Features
- The vertical shredder is suitable for raw materials of different shapes. It has super large opening for convenient feeding.
- The hydraulic propulsion and tilting feed is utilized in the vertical feed shredder to assure the stable feed avoiding blocking.
- The revolution of the vertical shredder is low so as to ensure the stable operation with low energy consumption.
- Overloading protection device is installed to the vertical shredder. Its rotors will rotate adversely to secure safety if running across hard materials.
- The shredder has spiral, scraper blade, belt and many other discharging methods.
- The vertical feed shredder can cut materials into chips or shavings for shaving board or biomass production. Compared to common shredders, the vertical shredder is durable and has the advantage of cutting different materials at the same time.
- Screens and cutters of the vertical feed shredder can be replaced easily.
Product Parameters
| Type | Main Motor Power (KW) | Output (T) | Feeding Opening (MM) | Weight (T) |
| BPP-S-650 | 18.5 | Chip: 0.8-1.2 Shaving: 0.4-0.6 | 650 × 1100 | 1.5 |
| BPP-S-750 | 18.5/22 | Chip: 1.2-1.5 Shaving: 0.6-0.8 | 750 × 1100 | 2.1 |
| BPP-S-850 | 22/30 | Chip: 2-2.5 Shaving: 1-1.3 | 850 × 1100 | 2.6 |
| BPP-S-1050 | 30/37 | Chip: 3-3.5 Shaving: 1.5-1.8 | 1050 × 1600 | 3.2 |
| BPP-S-1250 | 45/55 | Chip: 4-5 Shaving: 2-2.5 | 1250 × 1600 | 3.6 |
| BPP-S-1450 | 55/75/90 | Chip: 5-6 Shaving: 2.5-3 | 1450 × 1600 | 4.1 |
| BPP-S-1700 | 90/110/ /132 | Chip: 6-7 Shaving: 3-3.5 | 1700 × 2300 | 5.3 |
| BPP-S-2000 | 110/132/160 | Chip: 7-8 Shaving: 3.5-4 | 2000 × 2300 | 6.5 |
After-sale Service
According to the requirements of customers, our engineers and translators can offer on-the-sport installation and adjustment until the vertical feed shredder operates safely and stably. What’s more, we will train users to maximize the production capacity on the condition of the stable operation of the vertical shredder.
Maintenance
1. If there is metal, rock and other hard sundries in the raw materials of the vertical shredder, we should first get rid of them before shredding. In this way, we can prevent blades, screens and other components of the vertical shredder from damaging and avoid accidents.
2. Adopting high-performance magnetic selector to vertical feed shredder is suggested for this magnetic selector can get rid of tramp iron and to prevent screen from damaging.
3. The temperature of raw materials of the vertical shredder should not be higher than 50℃.
4. For mordant materials, clear up work to the vertical feed shredder should be done well after shredding.
5. Lubricating oil and hydraulic oil should be replaced at regular intervals to the vertical shredder.
Packing and Transportation
Vertical feed shredder is packaged with waterproof polyethylene plastic film and wooden cases for external use. We adopt ocean shipping, land, air or sea-land transportation.
Wood waste shredder is manufactured by Beijing Panda Pellet Machinery Co., Ltd. Besides vertical feed shredders, we also offer horizontal feed shredders, three rotors hammer flakers, drum dryers and so on. The company offers technology of biomass solidifying fuel production and complete equipment all over the world. We have a large number of users in this field.
